Understanding UV Cold Mirrors: A Comprehensive Guide

Introduction to UV Cold Mirrors

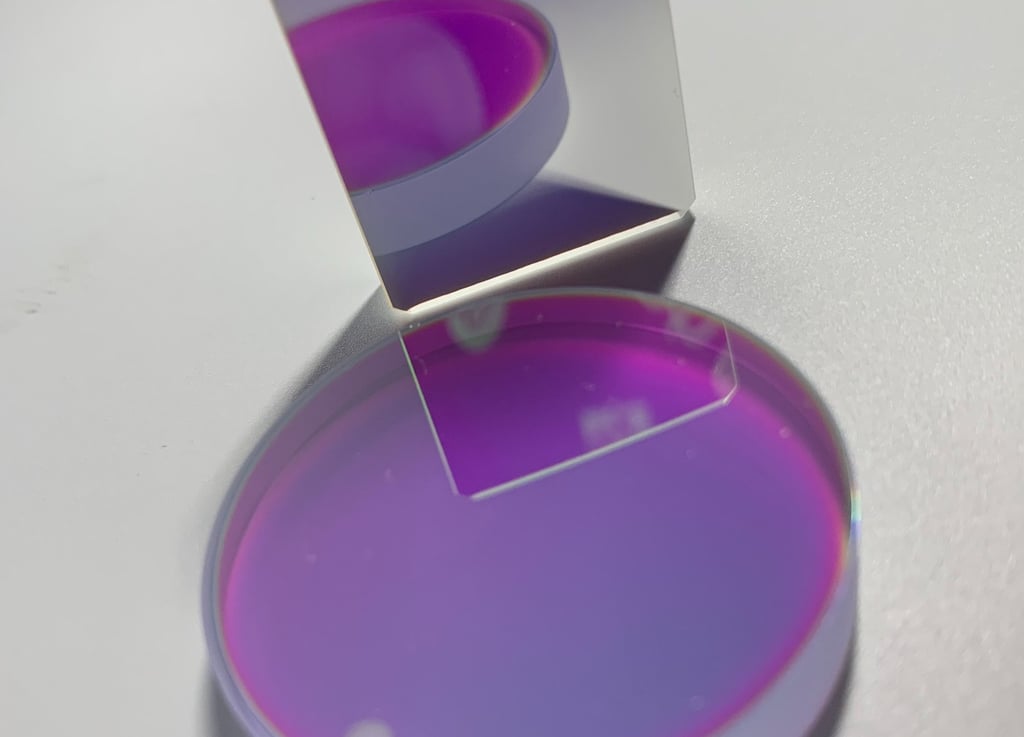

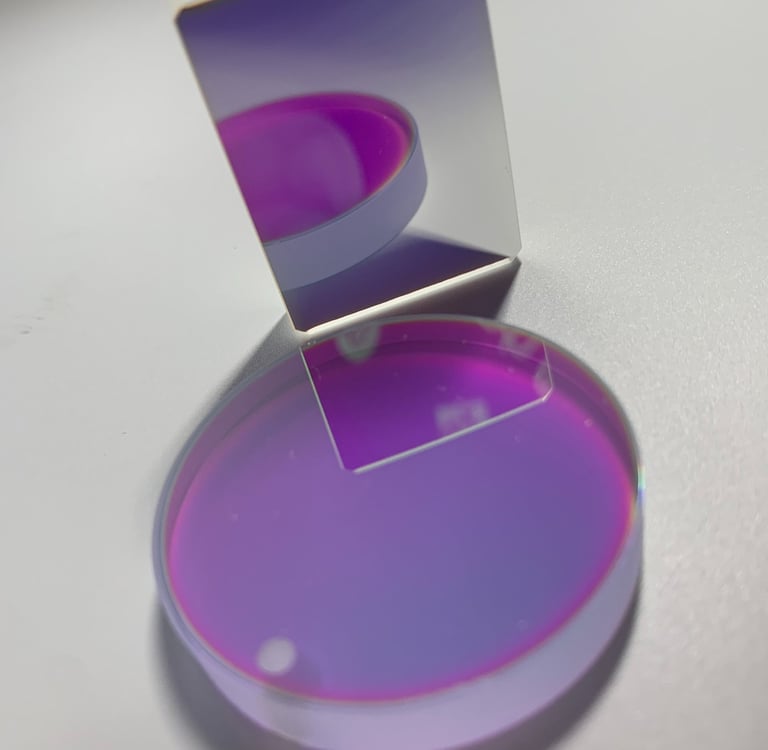

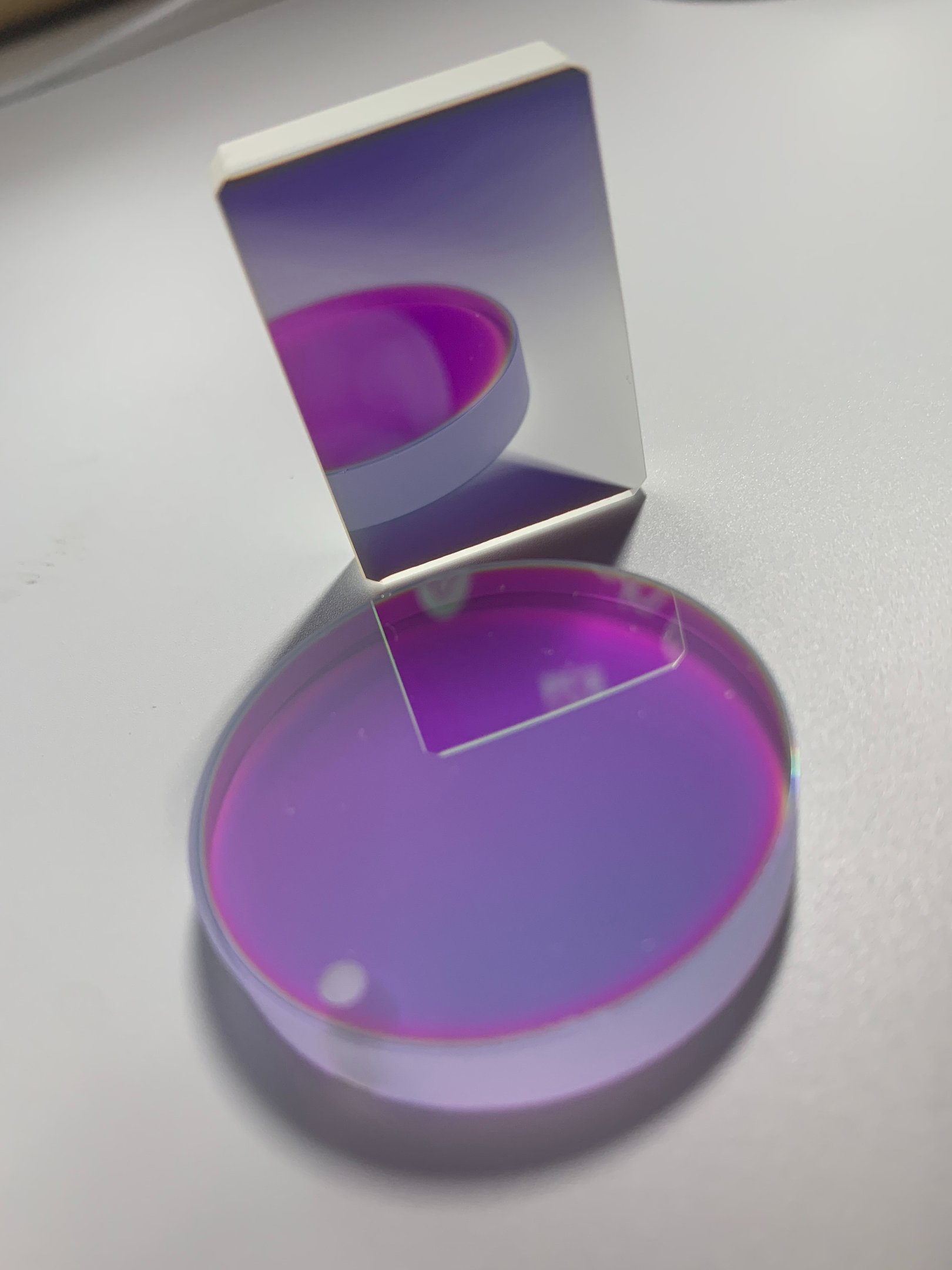

UV cold mirrors are specialized heat-transmitting mirrors that serve a dual purpose. Designed to act as long-pass filters, these mirrors reflect visible light while transmitting Near-Infrared (NIR) wavelengths. This unique property makes them invaluable in a variety of optical and industrial applications.

How UV Cold Mirrors Work

Cold mirrors operate by reflecting the visible light spectrum and transmitting the 'hot' NIR and sometimes ultraviolet (UV) parts. This dual functionality ensures that the visible portion of the light is reflected while the thermally intense NIR wavelengths are transmitted, thereby preventing heat buildup. This makes UV cold mirrors particularly useful in systems that require efficient heat management alongside visible light reflection.

Materials Used in UV Cold Mirrors

The effectiveness and durability of UV cold mirrors largely depend on the materials used in their construction. Typically, these mirrors are made from:

• Fused Silica: Known for high thermal stability and low thermal expansion, making it ideal for high-precision applications.

• H-K9L (BK7): A borosilicate glass with excellent optical clarity and thermal properties.

• Float Glass: Offering good flatness and optical clarity, suitable for a wide range of applications.

Technical Specifications and Tolerances

When selecting a UV cold mirror, understanding its technical specifications and tolerances is crucial. The key specifications include:

• Dimension Range: Available in diameters ranging from φ3mm to φ300mm.

• Tolerance: Precision guaranteed with a tolerance of +0.0/-0.1mm.

• Front Surface Flatness: Maintains a flatness of λ/4 to ensure optimal performance.

• Surface Quality: Ensures a quality of 60-40 parallelism within 3 arcmin.

• Clear Aperture: More than 90% clear aperture for maximum efficiency.

• Back Surface: Typically fine ground for improved structural integrity.

• Coating: Hot mirror coatings to enhance the reflective properties of the visible spectrum.

Applications and Benefits

UV cold mirrors are utilized across various industries, including microscopy, lighting systems, and projection systems. Their ability to manage heat effectively while reflecting visible light makes them essential in situations where excess heat could degrade system performance or damage sensitive components. They are also beneficial in enhancing the lifespan of optical systems by mitigating thermal stress.

Conclusion

UV cold mirrors offer a blend of heat management and optical clarity, making them indispensable in high-precision and high-performance applications. Understanding their construction, specifications, and benefits enables better selection and utilization, ensuring optimal performance of optical systems.

Changchun Positive Optics is a reputable manufacturer of optical mirrors, particularly specializing in high-quality UV cold mirrors. Their products are designed to provide quality assurance, making them the ideal choice for all your optical needs. When it comes to UV cold mirror requirements, you can trust PO Optics to deliver reliable and efficient solutions. With their commitment to excellence and dedication to meeting customer needs, you can be confident in the performance and durability of their products. Whether you're in need of UV cold mirrors for scientific research, industrial applications, or other optical purposes, Changchun Positive Optics has the expertise and products to fulfill your requirements. Trust in their expertise and quality to enhance the performance of your optical systems.
