The Difference Betwee Optical Roof Prisms and Right Angular Prisms

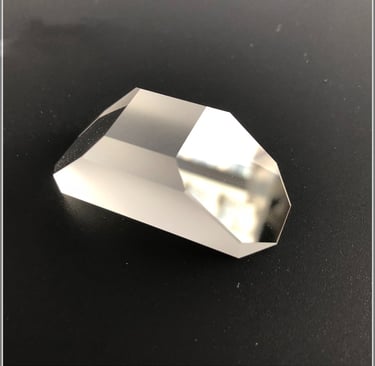

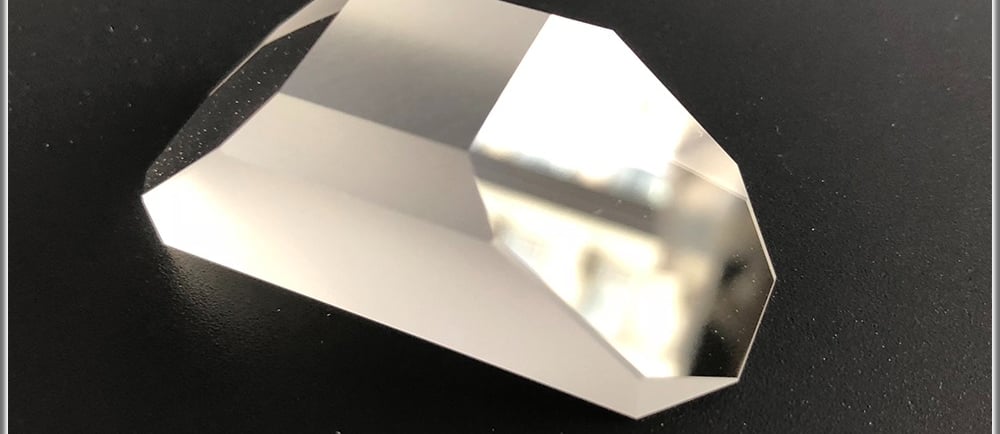

The Basics of Roof Prisms

Roof prisms are integral components in many compact optical instruments, known for their unique structure and functionality. These prisms are long and thin, composed of two right-angle triangles joined together. The operational principle of a roof prism involves light entering one end of the prism and being redirected multiple times within its structure before exiting at the opposite end. The key purpose of this internal light redirection is to invert and erect images, a necessity in devices like binoculars, cameras, and spotting scopes.

Applications of Roof Prisms

Roof prisms are extensively used due to their ability to maintain a compact and linear design in optical devices. Instruments such as binoculars benefit greatly, as the roof prism allows for a straight-line path of sight, which leads to a more streamlined and user-friendly design. Cameras and spotting scopes also utilize roof prisms to ensure that the images viewed through the lens are correctly oriented, enhancing the practicality and effectiveness of these devices.

The Functionality of Right Angular Prisms

Contrastingly, right angular prisms feature a different geometric structure and operational mechanism. These prisms have a 90-degree angle formed between two perpendicular rectangular faces, with an angled face connecting them. Within right angular prisms, the light is reflected off the hypotenuse of the triangular prism, redirecting the beam precisely at a 90-degree angle. This type of prism is particularly useful in various applications where altering the direction of the light path is critical.

Comparison and Distinctions

While both roof prisms and right angular prisms play pivotal roles in optical technology, their designs and functionalities cater to different purposes. Roof prisms, with their ability to invert and erect images while maintaining a compact form, are preferred for portable optical devices. In contrast, right angular prisms excel in scenarios where a precise 90-degree redirection of light is needed. This diversity in prism types ensures that optical instruments can be customized and optimized for their specific uses.

In conclusion, understanding the differences between roof prisms and right angular prisms—ranging from their structural designs to their operational principles—can significantly enhance one's appreciation for optical technologies. Whether for image inversion and erection or accurate light redirection, these prisms are indispensable in the realm of optics.

Overall, the primary difference between a roof prism and a right angle prism is their shape and use. Roof prisms are best suited for compact optical instruments that require image inversion, while right angle prisms are ideal for redirecting light beams at a 90-degree angle in laser technology, measuring refractive indices, and precise alignment of optical instruments.
