The Advantages of Powell Prisms in Laser Scribing

Introduction to Powell Prisms

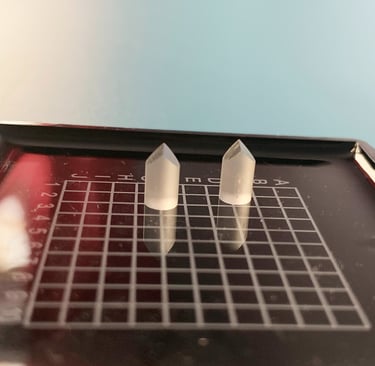

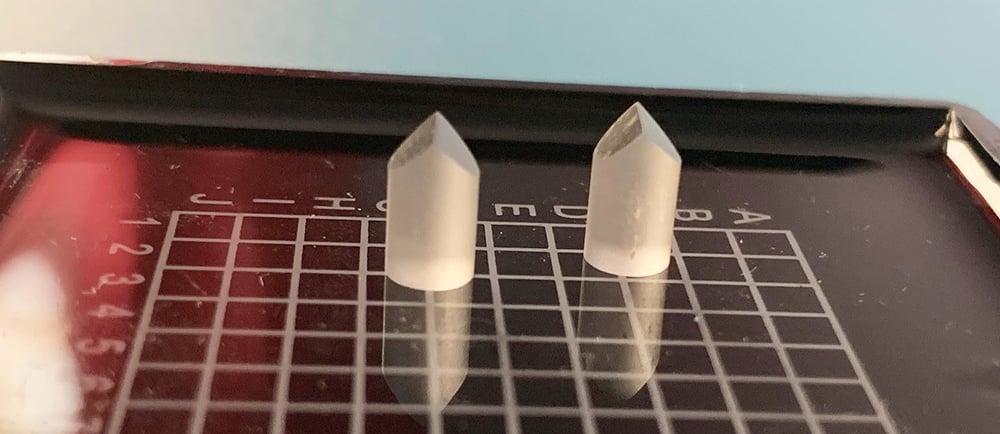

Powell prisms are advanced optical scribing tools that enable a laser beam to be transformed into a straight line with uniform optical density, good stability, and excellent straightness. This innovative technology offers significant improvements over traditional cylindrical lenses in laser scribing applications.

How Powell Prisms Work

The key to the superior performance of Powell prisms lies in their unique design. Unlike conventional cylindrical lenses that produce an unevenly distributed straight line, Powell prisms feature a complex two-dimensional aspherical surface at their top. This intricate surface generates a substantial amount of spherical aberration when a laser beam passes through it. The resulting redistribution of the light path ensures that the center of the beam is less intense, eliminating the center hot spot and fading edge distribution commonly seen with Gaussian beams.

Benefits of Powell Prism Scribing

Powell prism scribing offers numerous advantages over the scribing mode of cylindrical lenses. The primary benefit is the uniform optical density achieved along the entire length of the scribed line. This uniformity is crucial for applications requiring precise and consistent laser lines. Additionally, the good stability and straightness provided by Powell prisms make them ideal for high-precision tasks.

Comparison with Cylindrical Lenses

When a Gaussian laser beam passes through an ordinary cylindrical lens, it produces a line with uneven optical density. The center of the line typically exhibits a hot spot, while the edges fade, leading to suboptimal scribing results. In contrast, the design of Powell prisms effectively redistributes the light, minimizing the intensity at the center and ensuring a more even distribution along the line. This results in a higher-quality scribed line, free from the common drawbacks of cylindrical lenses.

Applications of Powell Prisms

Powell prisms are utilized in a variety of applications where precise laser scribing is required. Industries such as manufacturing, electronics, and scientific research benefit from the enhanced performance of these prisms. Whether used for marking, cutting, or measuring, Powell prisms provide the accuracy and reliability needed for demanding tasks.

Conclusion

In summary, Powell prisms represent a significant advancement in optical scribing technology. Their ability to produce straight lines with uniform optical density, good stability, and excellent straightness makes them superior to traditional cylindrical lenses. By eliminating the center hot spot and fading edges of Gaussian beams, Powell prisms ensure high-quality scribing results, making them indispensable in various precision-driven industries.
