Understanding Optical Window: Essential Components for Protecting Sensitive Instruments

What Are Optical Windows?

Optical windows are flat, plane-parallel, and transparent optical surfaces that serve a vital role in protecting sensitive sensors and electronic instruments. These components are designed to shield internal electronic parts from various environmental conditions, including dust, moisture, and mechanical impacts, which can adversely affect their performance. By employing optical windows, manufacturers ensure the reliability and longevity of their products in challenging environments.

Key Features of Optical Windows

One of the foremost characteristics of optical windows is their flatness and parallelism, which are essential to maintaining the desired optical clarity and distortion-free image transfer. High-quality optical windows are fabricated from materials such as glass or transparent polymers, which allow for minimal light reflection and a maximum level of light transmission. Thus, they can effectively perform the dual function of protection and functionality without compromising optical performance.

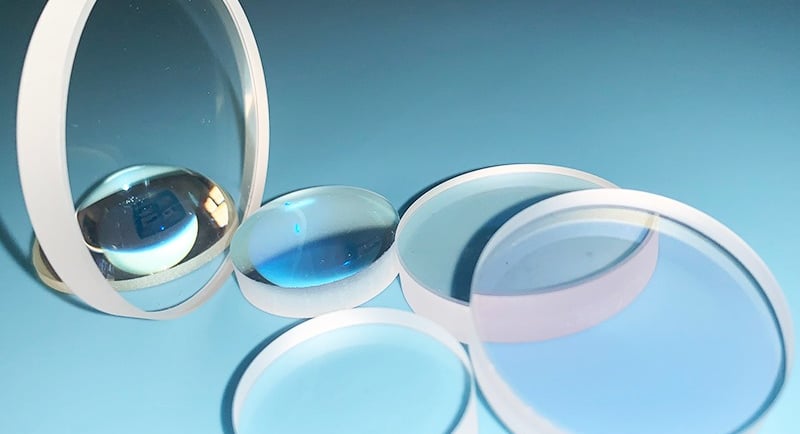

Optical Windows

Ultraviolet Windows

This kind of optial windows-ultraviolet windows are often used with laser instruments or other applications in medical, industrial and defense areas. Sydor Optics can help determine the best substrates, UV coatings, and other optical properties and custom manufacture UV windows to best meet your specific requirements and applications. Anti-Reflective (AR) coating is available for one or both surfaces.

Visible Windows

Visible windows are designed for use in the visible spectrum: the type of light visible to the human eye. Visible windows are ideal for protecting optical systems and other optical components, imaging or display systems, or other applications. Sydor Optics can custom manufacture visible windows in a variety of shapes, sizes, and substrates for various optics applications, including those with extreme temperatures or other challenging conditions. AR coating is available for one or both surfaces.

Infrared (IR) Windows

Infrared windows are often used in FLIR, FTIR spectroscopy, medical systems, thermal imaging, or other optics applications within the infrared light spectrum. IR windows can help protect your employees and equipment. Sydor Optics can custom manufacture IR windows in a variety of shapes, sizes, substrates, and coatings for various infrared applications. AR coating is available for one or both surfaces.

Applications of Optical Windows

The applications for optical windows are extensive and span various industries. In scientific research, they protect delicate instruments such as spectrometers and lasers from external contaminants. In industrial settings, optical windows are integral components in thermal cameras, spectrophotometers, and other electronic devices exposed to harsh conditions. Additionally, in the field of telecommunications, these optical surfaces are used to enhance the durability of devices by limiting environmental exposure.

For instance, optical windows in thermal imaging cameras are specifically designed to withstand high temperatures while allowing infrared light to reach the sensor beneath. Therefore, choosing the right optical window is crucial depending on the application's specific requirements regarding spectral range, environmental exposure, and mechanical stress.

Conclusion

In conclusion, optical windows play an indispensable role in safeguarding sensitive sensors and electronic instruments from environmental challenges. With their transparent and flat nature, they not only provide protection but also ensure high optical performance. Understanding the features and applications of optical windows is essential for anyone involved in the design or maintenance of electronic systems that require guaranteed durability and reliability.
