Dielectric Filters: The Ultimate Guide for Precision Optical Systems

Dielectric Filters

4/14/20252 min read

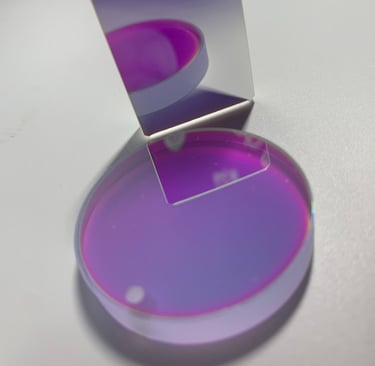

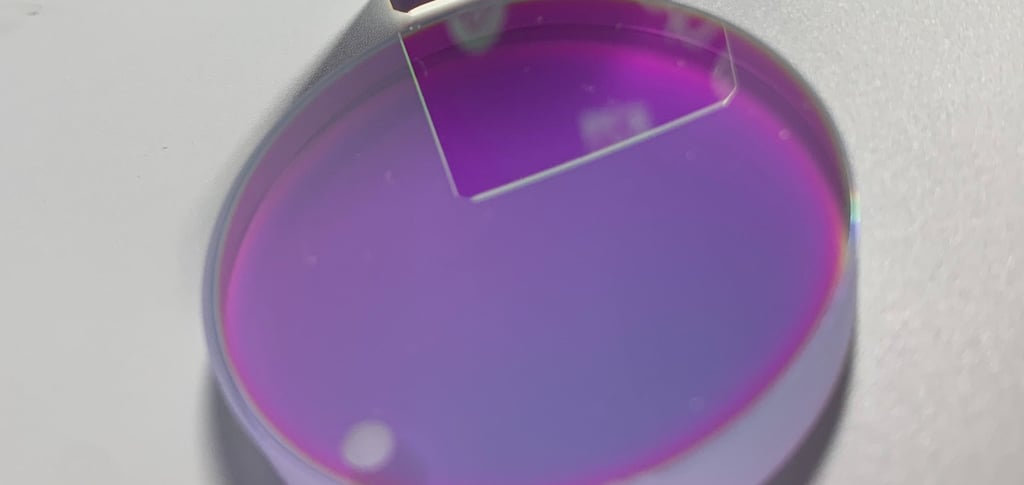

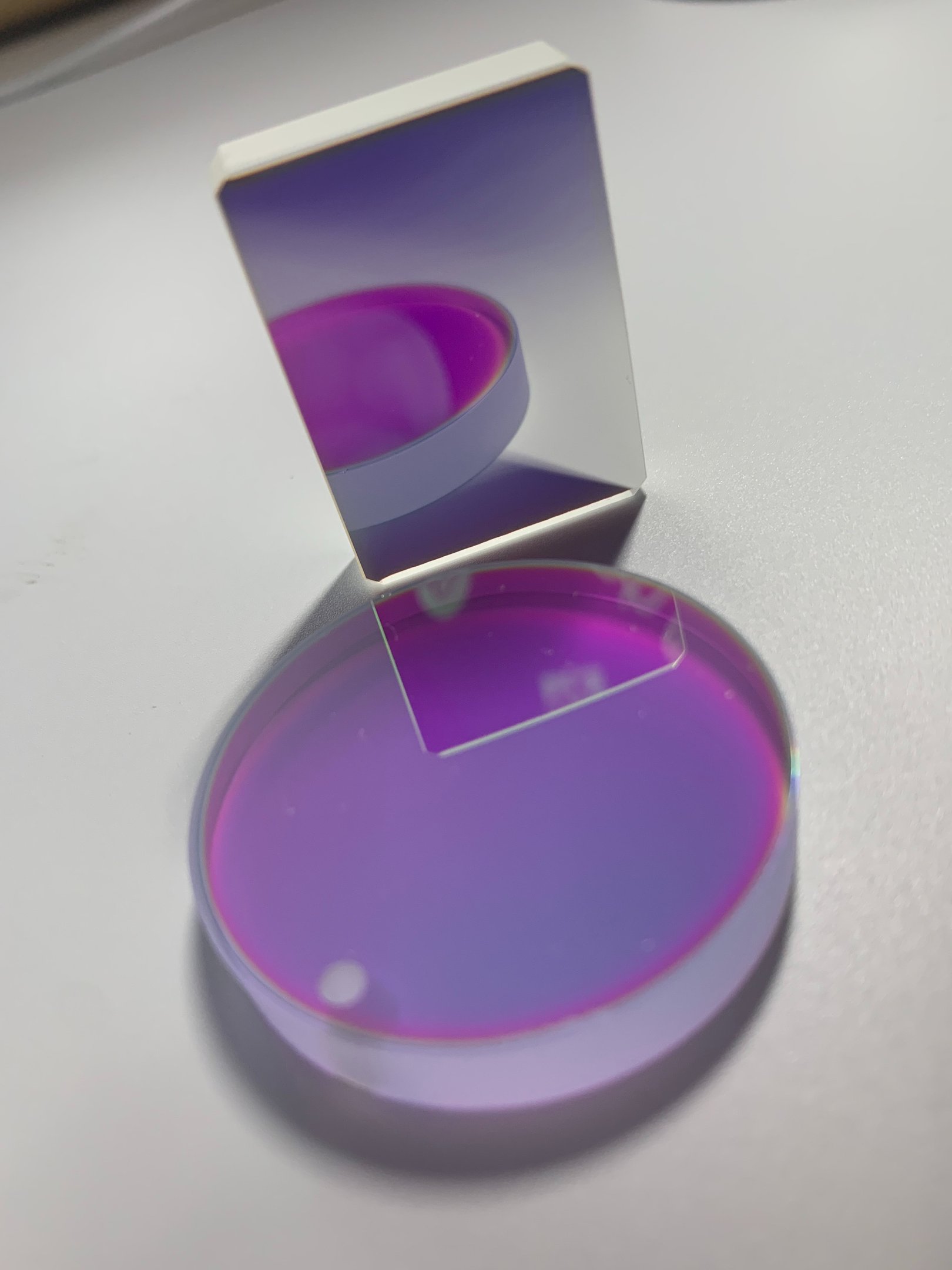

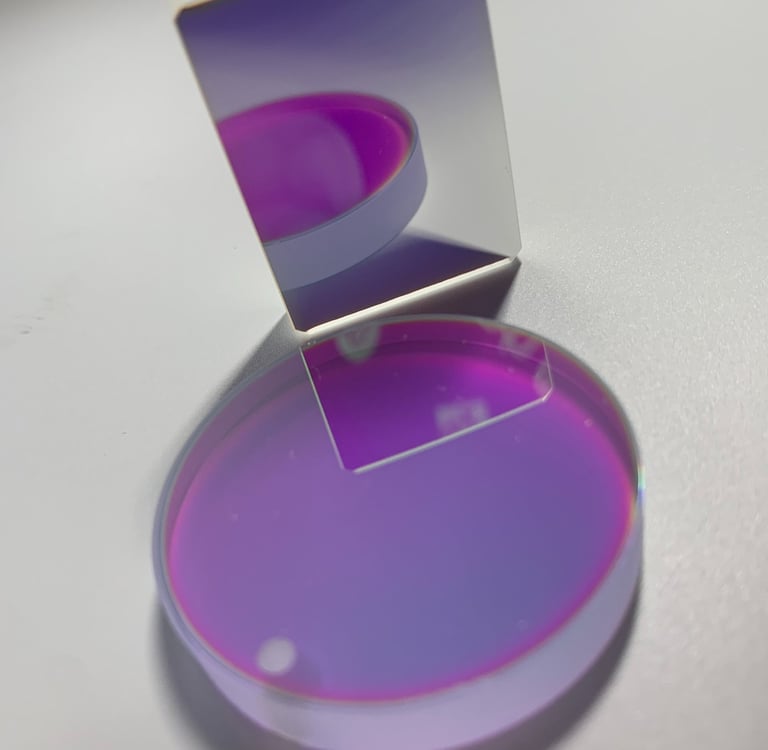

Introduction: Why Dielectric Filters Matter in Modern Optics

Dielectric filters (also known as interference filters) are essential components in applications requiring precise wavelength selection—from biomedical imaging to telecommunications. Unlike absorptive filters, they use thin-film interference coatings to achieve superior spectral performance, including:

Sharp cut-on/off edges (transition widths <5nm possible)

High transmission (>95% in passband)

Exceptional blocking (OD4-OD6 out-of-band rejection)

At Changchun Positive Optics Co., Ltd, we specialize in custom dielectric filters tailored for lasers, spectroscopy, and machine vision.

How Dielectric Filters Work: The Science Behind the Coating

Dielectric filters rely on multi-layer thin-film interference to selectively transmit or reflect specific wavelengths.

Key Design Principles:

1. Alternating Layers – High-index (e.g., TiO₂, Ta₂O₅) and low-index (e.g., SiO₂, MgF₂) materials are deposited in precise thicknesses.

2. Constructive & Destructive Interference – Light waves combine to enhance transmission in the desired band while blocking unwanted wavelengths.

3. Angle of Incidence (AOI) Optimization – Filters can be tuned for 0° (normal incidence) or angled designs (up to 45°).

🔬 Pro Tip: For ultra-narrowband filters (<1nm bandwidth), we use ion-assisted deposition (IAD) to minimize layer defects.

Types of Dielectric Filters & Their Applications

| Filter Type | Key Features | Applications |

| Bandpass Filters | Transmits a specific wavelength range | Fluorescence microscopy, Raman spectroscopy |

| Edge Filters | Blocks all light above/below cutoff | Laser safety, solar imaging |

| Notch Filters | Blocks a narrow band (e.g., laser lines) | LiDAR, astronomy |

| Dichroic Filters | Reflects one band, transmits another | Beam splitting, multispectral imaging |

Critical Factors When Choosing a Dielectric Filter

1. Center Wavelength (CWL) & Bandwidth – Need a 532nm ±2nm filter? We achieve ±0.5nm tolerance.

2. Blocking Range & OD Level – Reject unwanted light with OD6 (1,000,000:1 attenuation).

3. Damage Threshold – Our filters withstand >10 J/cm² @1064nm, 10ns pulses.

4. Environmental Durability – Tested for humidity, thermal cycling (-50°C to 300°C), and abrasion.

5. Coating Technology – Choose from:

- Magnetron Sputtering (best for high durability)

- E-Beam Evaporation (ideal for complex multi-band designs)

Why Our Dielectric Filters Stand Out

Custom-Engineered Solutions – Provide your specs, and we’ll simulate the design before production.

Broad Material Selection – Fused silica, N-BK7, sapphire, or custom substrates.

Fast Prototyping10-15 days for first articles (standard sizes).

Certified Quality – ISO 9001, MIL-PRF-13830 compliant.

Case Study: Improving Hyperspectral Imaging

A drone imaging company needed a 700-1000nm bandpass filter with:

>90% transmission

<2% reflection loss

Solar radiation resistance

Our Solution:

- 76-layer Ta₂O₅/SiO₂ coating

- Hardened AR coating for outdoor durability

- OD5 blocking from 300-690nm & 1010-1700nm

Result: 30% higher SNR compared to their previous supplier.

FAQ: Answering Common Dielectric Filter Questions

Q: Can dielectric filters handle high-power lasers?

A: Yes! Our laser-grade filters feature low absorption (<0.1%) and high LIDT ratings.

Q: What's the minimum order quantity (MOQ)?

A: Prototypes start at 1pc, with volume discounts for 100+ units.

Q: How do I clean dielectric filters?

A: Use a methanol-cleaned lens tissue—we include a free cleaning guide with every order.
